SDS manufacture hydraulic powered grouting units. Grouting units are designed as both manuel and computer control. In SDS product range there grouting stations, grouting pumps, mixers and agitators.
Grouting Units

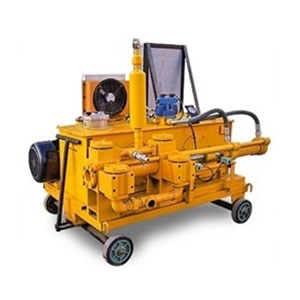

SDS – GP100 Grout pump
Power unit : 7,5 kW
Max. hydraulic pressure : 320 bar
Max. grout pressure : 60 bar
Max. flow rate : 100 lt/min
SDS – GP150 Grout pump
Power unit : 11 kW
Max. hydraulic pressure : 320 bar
Max. grout pressure : 100 bar
Max. flow rate : 150 lt/min

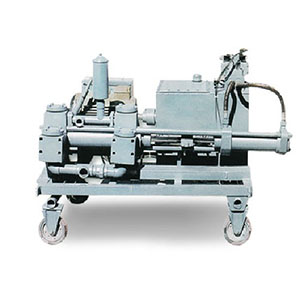

SDS – Top hole grout set
Pump type : GP100 or GP150
Hydraulic pressure : 320 bar
Max. grout pressure : 60 bar or 100 bar
Max. flow rate : 100 lt/min or 150 lt/min
Measurments : 80 x 140 x 70 cm
Agitator type : AG60 or AG80
Volume : 600 lt or 800 lt
Reduction out-put : 4 kW

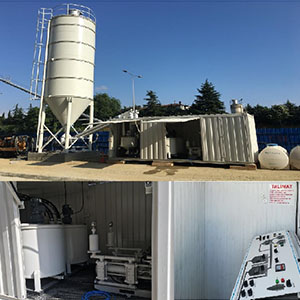

SDS Grouting station
Pump Type : GP150
Hydraulic pressure : 320 bar
Max. grout pressure : 100 bar
Max. flow rate : 9 m3 / h
Mixer type : SDS-MIX25 or MIX50
Bottom pump power : 7,5 kW
Reduction out-out : 4 kW
Volume : 250 lt or 500 lt

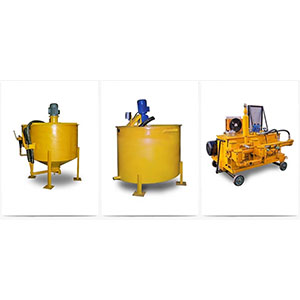

Agitator type : AG60 or AG80
Volume : 600 lt or 800 lt
Reduction : 4 kW
Water feed pump : 2 Hp
Bentonite slurry pump : 2 Hp
Chemicals feed pump : 0,4 kW

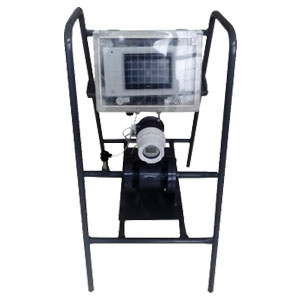

SDS Digital grout recorder
SDS digital grout recorders are designed for recording all informations with aim of sensors during grouting operation. SDS digital reccorders can measure and record during the opeariton;
– Pressure of grout
– Flow rate of grout
– Initial and total consumption of grout.
Users can record all these informaitons in computure or PDA. The software can draw graphich for all these informaitons. Users can take all informations by a usb stick memory to carry these datas to another computer.
